- 型号：M80
- 价格：1500
- 最小起订量：0
- 供货总量：0
- 产品介绍
This is 100% compatible with MSR206 the very durable Black Manual Swipe Magnetic Card Reader Writer, Series is designed to offer a card reading/writing solution for ISO 7811-6 and many other international standard formats. The M80 reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data. This machine comes with USB standard connection to the host computer. The M80 is manufactured at our ISO 9001 certified factory and comes with a 1-year warranty.
Features
Reading/Writing magnetic stripe card complied with ISO formats
Read/Write High & Low Coercive (300~4000Oe) really 4000OE
High/Low Coercivity encoding circuitry selectable on screen
Program software for Windows 98/Me/XP
Sequential write function, up to 12 digits (1 up)
Manual Swipe to read and/or write card with USB output
+24VDC, 2.5A Max external power adapter attached
Dimensions of 210(L) x 60(W) x 62(H) mm
|
Specification |
|
|
Electrical |
|
|
Power requirements |
+24VDC +/- 5% |
|
Consumption |
Typical 350mA Max. 600mA plus for each writing track |
|
Power supply |
External switching power 24V/2.5A |
|
Communication |
Standard USB cable |
|
Ripple |
50mVp-p or less |
|
Dielectric strength |
500 VDC for 1 minute |
|
Performance |
|||
|
Read card |
Track1 |
Track2 |
Track3 |
|
Bit per density |
210 bpi |
75/210bpi |
210 bpi |
|
Coercive force |
Read/write 300-4000 oe Mag.card |
||
|
Card thickness |
0.76-1.2mm |
||
|
Read speed |
STD card |
Jitter +/-15% |
Amp. 60% |
|
|
5-55ips |
5-50ips |
5-50ips |
|
Write speed |
5-30ips |
||
|
Write jitter |
Interval < +/- 10%, Sub-interval < +/- 12% |
||
|
Error rate |
Read < 0.5% |
||
|
|
Write < 0.8% |
||
|
Head life |
Min. 1000K swipes for both read/write head |
||
|
Mechanical |
|
|
Body material |
ABS 94V-0 |
|
Weight |
Approx. 1.5kg |
|
Dimension |
210.1L x 60W x 62H mm |
|
Swipe |
Manual, single direction |
|
Environments |
|
|
Operation |
-10 to 55oC, 10 to 85% humidity |
|
Storage |
-30 to 70oC, 10 to 90% humidity |
|
Safety Approval |
|
|
Rating |
FCC Class B, CE ClassB, UL, cUL,ROSE |

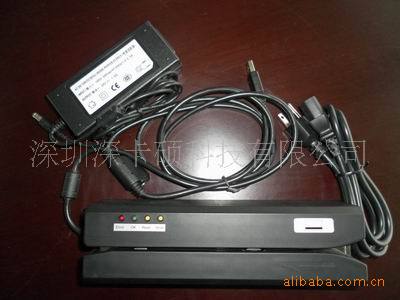

Box Contents:
1 M80 USB
1 Power Cord with Adapter
1 Clean card
10+10 Blank Magnetic Stripe Card(4000 OE)
1 Software CD
【产品介绍】： M80是全三轨高抗磁卡读写器/磁卡读写机/磁条卡读写槽，集低抗和高抗磁卡的读写功能于一体，可对存折、磁卡进行磁条信息的编码和读取，对于磁条信息读写均一次刷卡完成，具有读、写双重校验功能，性能稳定可靠，并且兼容性好，有良好的通用性。可广泛用于金融、邮电、交通、海关等各个领域，特别是银行系统的磁卡和存折的读写。
一、产品特点
1．可同时读写多个磁道（第1、2、3磁道），读写状态有指示灯和蜂鸣器提示。
2．手动刷卡，支持高低速划卡。
3．直接读写IBM、ISO、ANSI、DIN等标准的磁卡和存折，各轨均能自动识别IBM和ISO格式，无需命令控制，可用命令切换写卡格式和第二磁道记录密度。
4．提供各种演示驱动程序及Windows环境下的二次开发环境，可根据用户要求开发各种不同类型的指令集。
5．采用独特抗干扰措施，适合各种环境的使用。
二、主要技术指标
1．拉卡速度：10 ～ 120cm/s
2．读写标准：ISO7810/7811
3．可读写矫顽力范围：300-4000 Oe的磁卡
4．卡片厚度：0.76-1.2MM
5．记录密度(字符)：第一磁道：210BPI(76个字符)；第二磁道：75BPI(低密37个字符)/210BPI(高密104个字符)；第三磁道：210BPI(104个字符)
6．输出接口：USB
7．磁头寿命：> 80万次
8．电源：DC±24V，读电流：≤350mA，写电流：≤600mA
9．工作环境：温度-10℃～60℃，湿度 10% ～85%RH
10．重读写率：读卡<1/1000，写卡<1/100
11．数据标准：IBM/ISO/ANSI或DIN标准
12．尺寸：215×65×62mm，重量：1.5KG
