Performance Specifications Parameter 4 Channel 8 Channel 16 Channel Mux Demux Mux Demux Mux Demux Channel Wavelength (nm) 1270~1610 Center wavelength Accuracy (nm) ±0.5 Channel Spacing (nm) 20 Channel Passband (@-0.5dB bandwidth (nm) >13 Insertion Loss (dB) ≤1.6 ≤2.5 ≤4.5 Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5 Channel Ripple (dB) 0.3 Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30 Non-adjacent N/A >40 N/A >40 N/A >40 Inertion Loss Temperature Sensitivity (dB/℃)

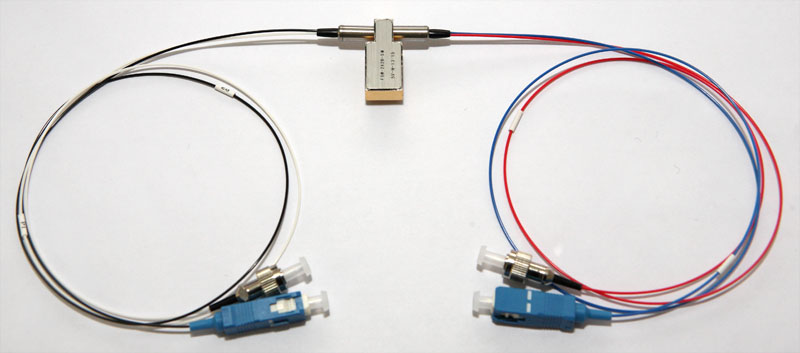

Parameters     2×2B Wavelength Range nm 670～980 1260～1650 Operating avelength nm 670/785/850/980 1310/1490/1550/1625/1650 Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8 Return Loss dB MM≥30    SM≥50 Crosstalk dB MM≥45    SM≥55 PDL dB ≤0.05 WDL dB ≤0.25 TDL dB ≤0.25 Repeatability        dB ≤±0.02 Power Supply        v 3.0 or 5.0 Lifetime       times ≥107 Switch Time        ms ≤8 Transmission Power    mW ≤500 Operating Temperature      ℃ -20～+70 Storage Temperature       ℃ -40～+85 Weight       g 16 Dimension      mm (L)27.0×(W)12.6×(H)8.0(±0.2mm)      customization is available.

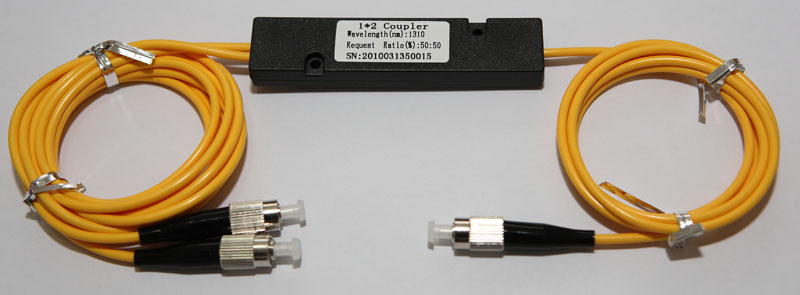

性能参数 等级Grade P 工作波长 (nm)  Operating Wavelength 1310/1550 工作带宽 (nm) Bandwidth 1310/1550±40 附加损耗 (dB) Excess Loss ≤ 0.07 插入损耗 (dB) Insertion Loss 50/50 ≤3.6 40/60 ≤4.7/2.7 30/70 ≤6.0/1.9 20/80 ≤7.9/1.2 10/90 ≤11.3/0.65 5/95 ≤14.6/0.4 3/97 ≤17.5/0.35 2/98 ≤18.8/0.3 1/99 ≤22.5/0.25 偏振敏感损耗 (dB)Polarization Dependent loss ≤0.15 方向性 (dB)  Directivity ≥55 工作温度 (℃)  Operation temperature -20~+70 存储温度(℃)Storage Temperature -40~+85

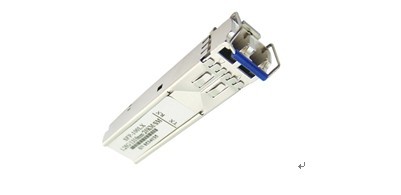

Product Information: Part No. Data Rate Wavelength distance TX power(dbm) RX Sens(dbm) Source SPF-SX-MM-6402 155Mb/s 1310nm 2km -15~-5dBm

Product Information: Part No. Data Rate Wavelength distance TX power(dbm) RX Sens(dbm) Source SPF-CWDM-XX-6840 155Mb/s 1270-1610 40km 0~+5

Parameters     FY-1×2 Wavelength Range       nm 670~980 1260~1650 OperatingWavelength nm 670/785/850/980 1310/1490/1550/1625/1650 Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8 Return Loss dB MM≥30   SM≥50 Crosstalk dB MM≥35   SM≥55 PDL dB ≤0.05 WDL dB ≤0.25 TDL dB ≤0.25 Repeatability dB ≤±0.02 Power supply v 3.0 or 5.0 Lifetime Time ≥107 Switch Time ms ≤8 Transmission Power mW ≤500 OperatingTemperature       ℃ -20~+70 Storage Temperature      ℃ -40~+85 Weight g 16 Dimension mm (L)27.0×(W)12.6×(H)8.0(±0.2)

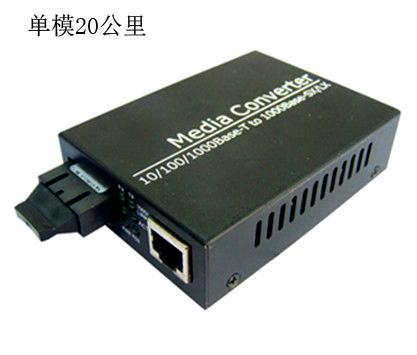

Product Information: Part No. Speed Wavelength Tx power RX sensitivity Transmission distance Dissipation GE-1000 1.25gb/s 850nm -6~-9dBm -18dBm 0.5km 7dBm GE-1000S 1.25gb/s 1310nm -9~-3dBm -21dBm 25km 12dBm GE-1000S.40 1.25gb/s 1310nm -4~-0dBm -25dBm 40km 21dBm GE-1000S.60 1.25gb/s 1310nm -2~0dBm -27dBm 60km 23dBm GE-1000S.80 1.25gb/s 1550nm -2~2dBm -26dBm 80km 22dBm GE-1000S.100 1.25gb/s 1550nm -3~0dBm -27dBm 100km 24dBm Technical Parameter: Access Method: 10/100/1000Mbps Standard: IEEE802.32/AB1000Base-T,or 100oBase-SX/LX , Wavelength: 850nm/1310nm/1550nm Access Method: 10/100/1000Mbps Distance: Category-5 twisted pair: 100m Fiber：multi-mode50/125，62.5/125μm（the max distance up to 225m or 550m） Fiber：Single -mode 8/125，8.7/125，9/125，10/125μm（the max distance up to 20 -120km） Port: 1 SC/FC/ST/MTRJ Optical Ports 1 RJ45 Ports Conversion Method: Media Conversion, Store-and-Forward/straight through MAC Address Table: 1 K Buffer Size: 256kb Flow Control: Duplex：flow control ; Half duplex：back pressure Time Delay: Store-and-Forward ： 9.6us ，Straight-through： 0.9us BER:

Parameters FY- 2×4 Wavelength Range      nm 1260-1650 (SM) 850 or 1310(MM) Insertion Loss         dB Typ:1.8  Max:2.0 Typ:1.8 Max:2.0 PDL                dB ≤0.05 Return loss           dB SM≥50、MM≥30 WDL               dB ≤0.25 Crosstalk            dB SM≥55、MM≥35 Repeatability         dB ≤±0.02 Drive Voltage         v 5.0 Lifetime            time ≥107 Switch Time         ms ≤8 Transmission Power  mW ≤500 Operation Temperature ℃ -20～+70 Storage Temperature   ℃ -40～+85 Dimension          mm (L)95×(W)76×(H)15
